Introduction

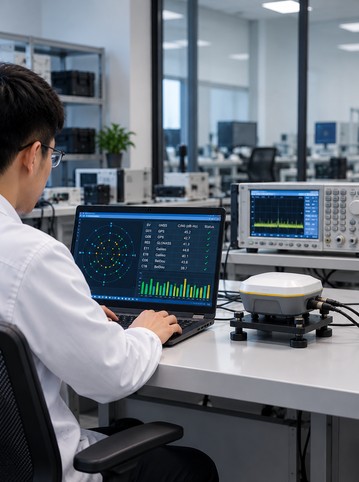

The HX-CR8602A is a multi-band GNSS repeater antenna designed to receive outdoor satellite signals and re-radiate them indoors, providing reliable GNSS signal coverage where direct satellite reception is limited or unavailable. It supports GPS L1/L2/L5, BDS B1/B2/B3, and GLONASS L1/L2 for multi-constellation and multi-frequency GNSS testing. With broad frequency coverage and stable signal performance, the HX-CR8602A provides an effective solution for testing GNSS receivers and positioning devices indoors. It is ideal for GNSS receiver testing, product development, production testing and verification, R&D laboratories, and other indoor GNSS testing and validation applications.

Full-Band Multi-Constellation GNSS Support
Reliable Indoor GNSS Signal Re-Radiation
Designed for GNSS Testing and Validation
Strong Interference Rejection with Pre-Filtered LNA

Key Features

Stable Phase Center

The high-gain GNSS antenna element features a wide radiation pattern and stable WACP performance. Its multi-feed design maintains a stable phase center and ensures reliable multi-band GNSS signal reception for indoor testing, validation, and repeater applications.
Rugged and Reliable Design

The rugged GNSS repeater antenna features a patented waterproof and breathable design, providing protection against dust, UV exposure, and water for reliable long-term operation. A standard TNC female connector enables easy integration into GNSS repeater systems.
Superior Interference Rejection

The integrated LNA provides excellent out-of-band rejection, effectively suppressing unwanted RF interference for stable and reliable GNSS signal reception. It ensures consistent performance for GNSS repeater systems and indoor testing in challenging RF environments.

Parameters

Performance
LNA
Mechaical
Environmental
Drawing

Signal Received	GPS L1/L2/L5 GLONASS L1/L2 GALILEO E1/E2/E5a/E5b BDS B1/B2/B3
Nominal Impedance	50Ω
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤2.0
Peak Gain	5.5dBi
System Performance	Operating Voltage: Power Adapter: AC 220 V Input, 5 V Output Power Consumption: ≤600mW

LNA Gain	40±2dB
Noise Figure	≤2.5dB
Output VSWR	≤2.5
Passband Ripple	±2dB
Operation Voltage	+3.3 to +12VDC
Operation Current	≤60mA
Group Delay Ripple	≤5ns
