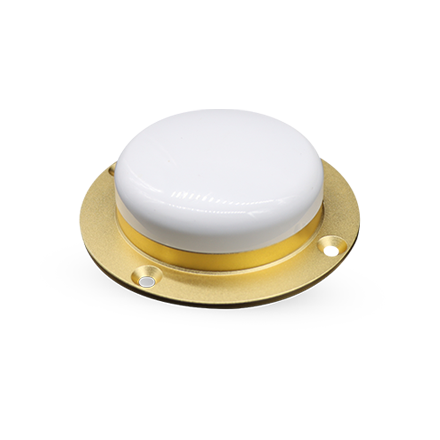

Aviation Antenna HX-CA3603A
HX-CA3603A is a high performance aviation antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. type antenna. It features small size, high-gain, low wind resistance, high sensitivity and low power consumption, which greatly improves the accuracy and speed of high-speed moving carrier positioning. It can be used with a variety of receivers, quite suitable for high-speed moving systems.
HX-CA3603A features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solution.
The ability to receive low elevation signals with high gain and wide beam width makes HX-CA3603A a suitable choice for tracking visible satellites and provide stable and precision GNSS data under different flight attitudes.
The antenna LNA features excellent out-of-band rejection performance, which can suppress the EMI, providing the stability and reliability of GNSS signals.
The dimension of HX-CA3603A is only 90x36.3mm with a light weight of 130g, and the IP67 ruggedized cover can protect the antenna from dust and water.
| Signal Received | GPS L1 Galileo E1 GLONASS L1 BDS B1 |
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Gain at Zenith (90°) | 1164-1300MHz 3dBi(maximum) 1525-1615MHz 4dBi (maximum) |
| LNA Gain | 36±2dB(typical) |
| Noise Figure | ≤2dB |
| Output VSWR | ≤2.0 |
| Operation Voltage | +3.3V to +12V DC |
| Operation Current | 35mA(maximum) |
| Group Delay Ripple | ＜5ns |
| Dimensions | ¢90*36.3mm |
| Connector | SMA female |
| Weight | ≤130g |
| Mounting | 4 M4 screws installation |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +85℃ |
| Humidity | 95% non-condensing |
| Water/Dust Resistance | IP67 |
| Regulatory Compliance | CE, FCC, RoHS, REACH |
