Mini Choke Ring Antenna HX-CGX611A

Overview

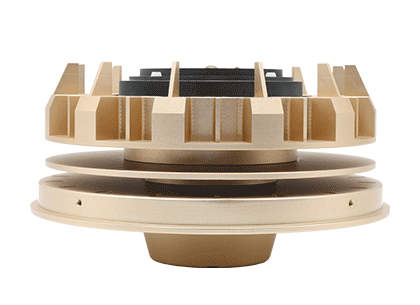

Harxon HX-CGX611A is a high performance GNSS antenna for base station that covers comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBASas well as L-Band correction service. It is a mini choke ring antenna with strong multipath suppression performance, specifically designed for applications require absolute positioning accuracy and multi-constellation support.

Key Features

High Phase Center Stability

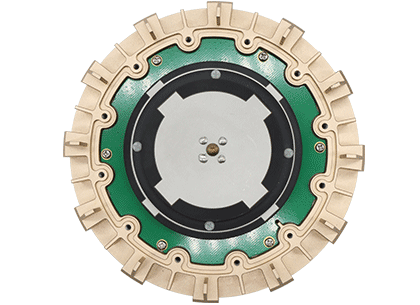

HX-CGX611A adopts unique choke ring structure design which delivers extraordinary multipath suppression performance. It also features Harxon patented multi-point feeding technology to achieve the repeatability of phase center and geometrical center.

Excellent Signal Tracking in Challenging Environments

HX-CGX611A excels its signal tracking performance thank to its high gain and wide beam width for directional diagram, which ensures ideal satellite signal reception.

Powerful Anti-interference Performance

The LNA of this antenna features an excellent out-of-band rejection performance, which can suppress unwanted electromagnetic interference(EMI) and avoid many other interferences.

Mini Design with Ruggedization and Durability

HX-CGX611A is a ruggedized and durable mini choke ring antenna that built into an IP67 rating housing with multiple protection designs to withstand exposure against dust, rain, splash or sunlight.

Parameters

PERFORMANCE

Signal Received

GPS L1/L2/L5
GLONASS L1/L2/L3
GALILEO E1/E5a/E5b/E6
BDS B1/B2/B3
QZSS L1/L2/L5/L6
IRNSS L5
SBAS L1/L5
L-Band

Nominal Impedance

50Ω

Polarization

RHCP

Axial Ratio

≤3dB

Azimuth Coverage

360°(Omni-directional)

Output VSWR

≤2.0

Peak Gain

6.5dBi

Phase Center Repeatability

±1mm

LNA

LNA Gain

50±2dB

Noise Figure

≤2dB

Output VSWR

≤2.0

Passband Ripple

±2dB

Operation Voltage

+3.3V to +12V DC

Operation Current

≤60mA

Differential Propagation Delay

≤5ns

MECHANICAL

Dimensions

Φ185*148mm

Connector

TNC Female

Weight

≤2.5Kg

Mounting

5/8''×11 Screws

ENVIRONMENTAL

Operating Temperature

-40℃ to +85℃

Storage Temperature

-55℃ to +85℃

Humidity

95% non-condensing

Regulatory Compliance

IGS, NGS, CE, FCC, ROHS
