3D Choke Ring Antenna HX-CGX601A
High Performance Multi-constellation Antenna with Revolutionary Design
Inquiry
Overview
Key Features
Parameters
Applications
Download
Related Products
Overview

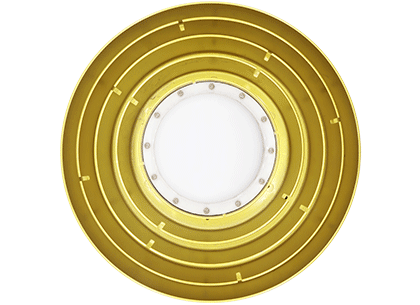

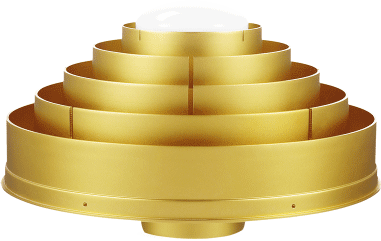

Harxon HX-CGX601A is a high performance GNSS antenna for base station that covers comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou as well as L-Band correction service. It is a 3D choke ring antenna with strong multipath suppression performance, specifically designed for applications require absolute positioning accuracy and multi-constellation support.
Key Features
High Phase Center Stability
The unique 3D choke ring design of HX-CGX601A ensures an excellent multipath reduction performance. And the antenna features Harxon patented multi-point feeding technology to achieve greater phase center stability.
Tracking in Challenging Environments
The strong ability to receive low elevation signals with high gain and wide beam width makes HX-CGX601A an excellent choice for tracking visible satellites and provide stable and precision GNSS data.
Strong Anti-interference Performance
The antenna LNA features an excellent out-of-band rejection performance, which can suppress the EMI, providing the stability and reliability of GNSS signals.
More Ruggedized for Long Lasting Durability
The IP67 ruggedized cover is made of Glass Fiber Reinforced Polymer(GFRP) material. The newly designed choke rings are treated with a more robust double treatment for longer lasting durability in harsh environments.
Parameters
PERFORMANCE
Signal Received
GPS L1/L2/L5/L-Band
GLONASS L1/L2/L3
GALILEO E1/E5a/E5b/E6
BDS B1/B2/B3
QZSS L1/L2/L5/L6
IRNSS L5
SBAS L1/L5
Nominal Impedance
50Ω
Polarization
RHCP
Axial Ratio
≤2dB
Gain at Zenith (90°)
1164-1300MHz 7.0dBi(maximum)
1525-1615MHz 6.5dBi(maximum)
LNA
LNA Gain
50dB(typical)
Noise Figure
≤2dB
Output/Input VSWR
≤2.0
Operation Voltage
+3.3 to +12VDC
Operation Current
60mA(maximum)
Group Delay Ripple
≤5ns
MECHANICAL
Dimensions
¢379*312mm
Connector
TNC female
Weight
≤10.5kg
Mounting
BSW5/8''-11 screw, depth≥22mm
ENVIRONMENTAL
Operating Temperature
-40℃ to +85℃
Storage Temperature
-55℃ to +85℃
Humidity
95% non-condensing
Water/Dust Resistance
IP67
Regulatory Compliance
IGS, NGS, CE, FCC, RoHS
Applications
Download
Harxon HX-CGX601A Brochure
2022-04-06
