The evolution of autonomous vehicles (AVs) hinges on precise and reliable positioning systems. At the heart of these systems lies the GNSS vehicle antenna, a critical component that ensures accurate navigation and safe operation. This article delves into the pivotal role of GNSS vehicle antennas in autonomous vehicles, highlighting their technological advancements, applications, and the leading solutions provided by Harxon.
Autonomous vehicles rely on a combination of sensors, including LiDAR, cameras, and radar, to perceive their environment. However, these sensors require precise positioning data to make informed decisions. GNSS (Global Navigation Satellite System) provides this data, offering real-time location information that is essential for path planning, obstacle avoidance, and overall vehicle control.
A GNSS vehicle antenna serves as the interface between the vehicle's onboard GNSS receiver and the satellite constellations. The antenna's performance directly impacts the accuracy and reliability of the positioning system. Factors such as signal reception quality, multipath mitigation, and phase center stability are crucial for ensuring that the vehicle can navigate safely and efficiently.
Modern GNSS antennas support multiple satellite constellations, including GPS, GLONASS, Galileo, BeiDou, and QZSS. This multi-constellation capability enhances satellite visibility and availability, improving positioning accuracy and reliability, especially in challenging environments.
Multi-frequency GNSS antennas can receive signals across different frequency bands, such as L1, L2, L5, and L-band. This feature allows for better ionospheric delay correction and improved signal robustness, which is vital for high-precision applications like autonomous driving.
Autonomous vehicles operate in diverse and often harsh environments. Therefore, GNSS vehicle antennas are designed to be compact, lightweight, and rugged. Features like IP67-rated enclosures ensure that the antennas can withstand dust, moisture, and mechanical stress, maintaining performance under various conditions.
Advanced GNSS antennas incorporate technologies like pre-filtered low-noise amplifiers (LNAs) and choke ring designs to suppress out-of-band interference and multipath signals. These enhancements ensure that the positioning system remains accurate and reliable, even in urban canyons or areas with high electromagnetic interference.
Harxon, a global leader in GNSS positioning solutions, offers a range of high-performance GNSS vehicle antennas tailored for autonomous vehicles and advanced driver-assistance systems (ADAS).

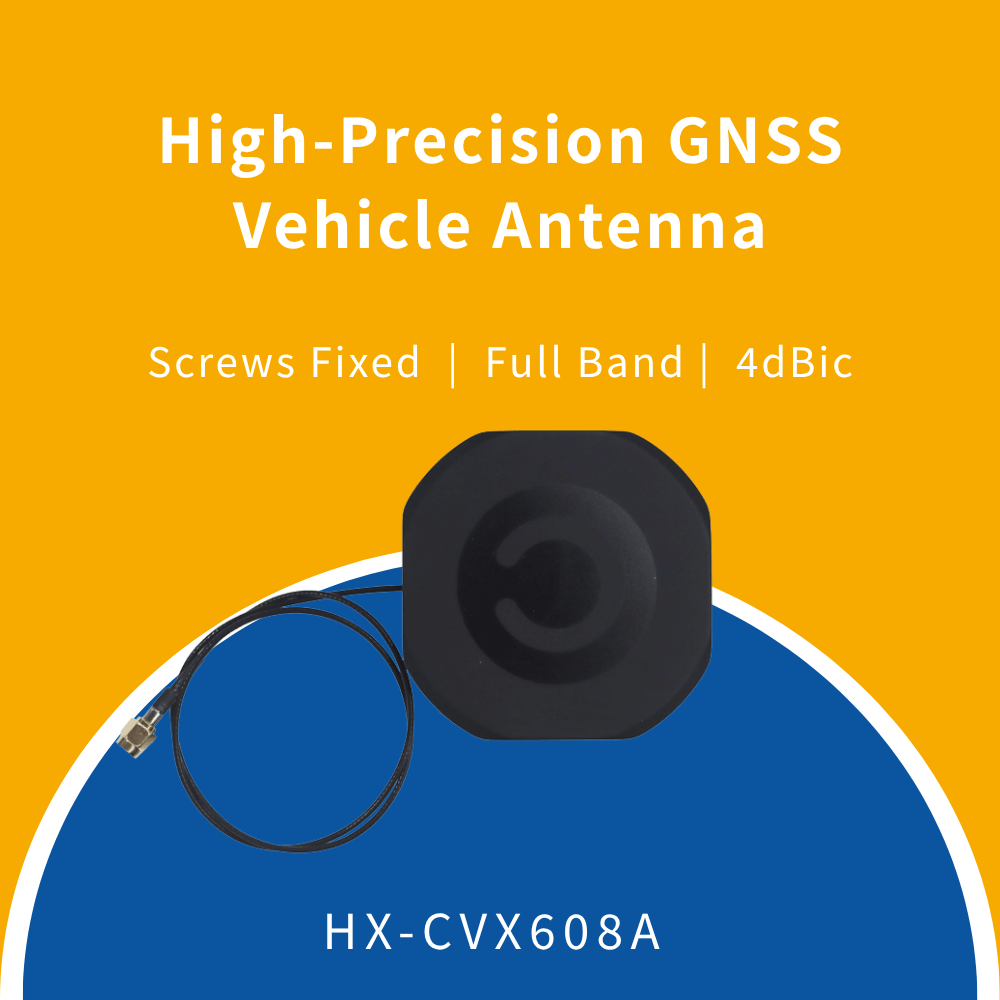

The HX-CVX608A is designed for high-dynamic applications, providing decimeter-level accuracy. Its compact form factor and ruggedized housing make it suitable for unmanned vehicles and mobile mapping systems. Key features include:
Multi-Constellation Support: GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B3, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, and L-band correction services.
High Gain and Low Noise: Equipped with a pre-filtered LNA for superior out-of-band interference rejection.
Rugged Design: IP67-rated enclosure ensures durability in harsh environments.
Flexible Installation: Supports both screw mount and magnetic mount options.

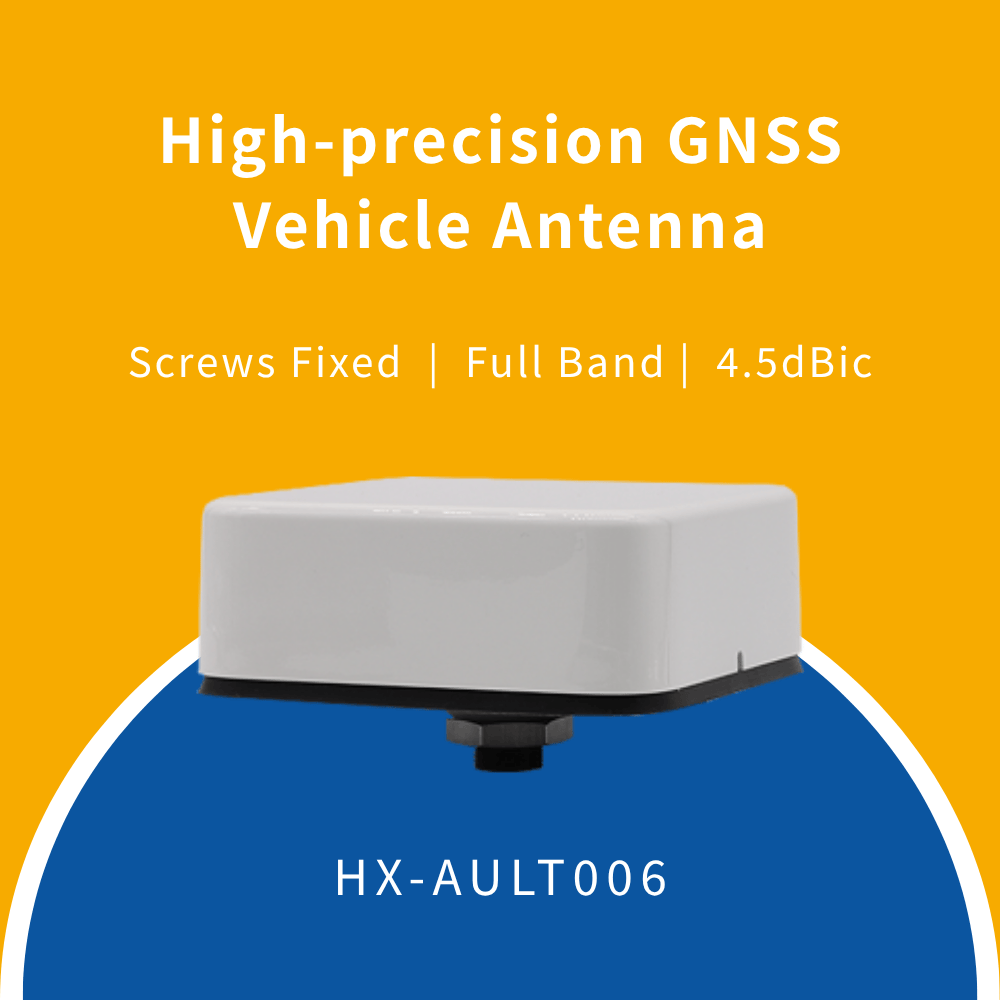

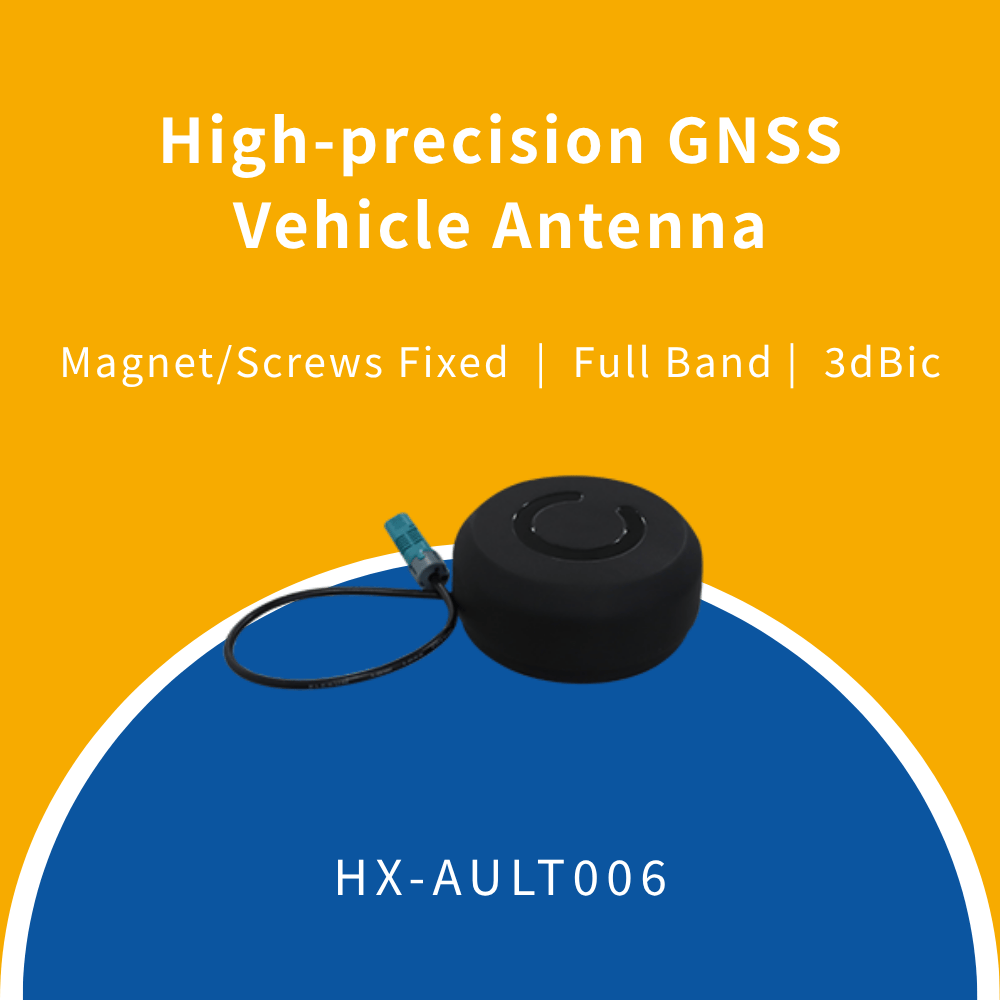

The HX-AULT006 is a multiband antenna designed for high-precision positioning in automotive applications. It offers:
Comprehensive GNSS Coverage: Supports GPS, GLONASS, Galileo, BeiDou, and L-band correction services.
Compact and Robust Design: Lightweight and rugged, ideal for autonomous vehicles and intelligent shuttles.
Enhanced Signal Processing: Features a high-performance LNA for improved signal reception.
The HX-AULT078 is tailored for high-precision positioning in challenging environments. Its features include:
Multi-Band GNSS Support: Covers GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and L-band.
Compact Form Factor: Suitable for integration into various vehicle platforms.
Durable Construction: Designed to withstand harsh operating conditions.
As autonomous vehicle technology continues to advance, the demand for high-precision GNSS vehicle antennas will grow. Future developments may include:
Integration with 5G and V2X Communication: Enhancing vehicle-to-everything communication for improved situational awareness.
Advanced Signal Processing Algorithms: Utilizing machine learning to predict and mitigate signal degradation.
Miniaturization: Developing smaller, more efficient antennas to fit into increasingly compact vehicle designs.
Harxon's commitment to innovation ensures that its GNSS vehicle antennas will continue to meet the evolving needs of the autonomous vehicle industry, providing reliable and accurate positioning solutions.
GNSS vehicle antennas are integral to the safe and efficient operation of autonomous vehicles. Technological advancements have led to the development of antennas that offer multi-constellation support, multi-frequency operation, and rugged designs, ensuring reliable performance in diverse environments. Harxon's range of high-precision GNSS vehicle antennas exemplifies these advancements, providing solutions that meet the stringent requirements of autonomous driving applications.
